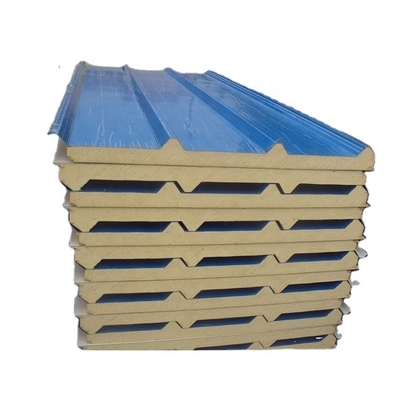

Sandwich panels consist of two outer metal sheets (steel, PVC, etc.) with an insulation
core (EPS ,XPS,rock wool, glass wool, PU, PROPER, etc.)sandwiched between them,
bonded with specialized adhesives. This system setup provides outstanding mechanical
performance at minimal weight. Rock wool sandwich panels use rock wool as its core
insulation.ROCKWOOL insulation is a lightweight high density material, made with
non-directional stone wool fibers delivering exceptional compression and tensile strength.
|
Effective width |
Wall panel: 950mm 1150mm |
|
Length |
According to customer's request(less than 11.8m) |
|
Materials |
Rock Wool, Color Steel Sheet |
|
Structure |
Upper And Lower Layer: Color Steel Sheet |
|
Thickness |
Color Steel Sheet: 0.3-0.8mm |
|
The Density of Rock Wool |
60kg/m3 -130kg/m3 |
|
Color |
RAL Standard |
|
Character |
Fireproof, Heat Insulation, Green And Environmental |
|
Use |
Various Roofs And Walls Referring To The Large Size Factory Buildings,Storages, Exhibition Halls, Gymnasiums Etc. |
